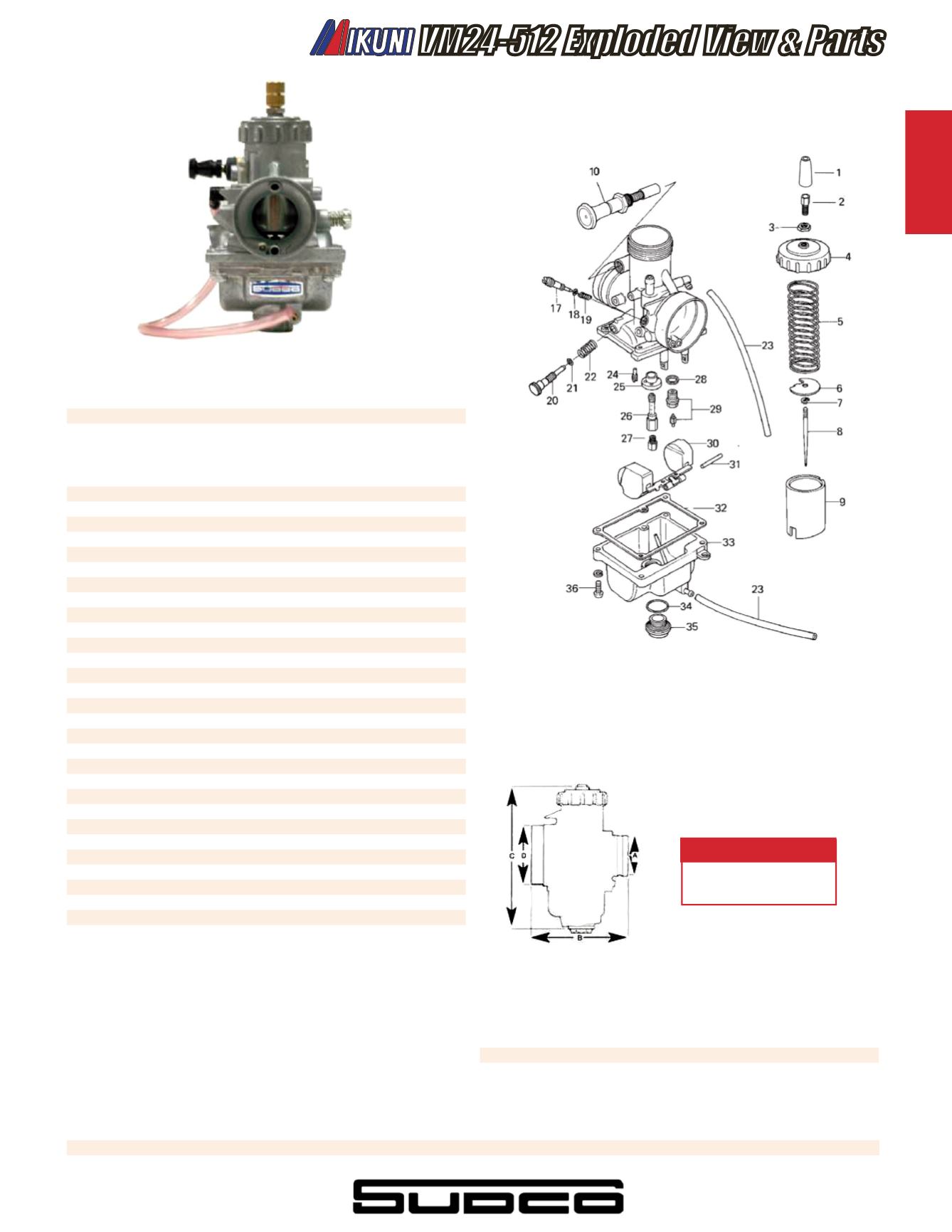

VM24-512 w/side choke Replacement Parts
• Lined through part numbers are not available.
No. Description Mikuni No. Order No.
1. Rubber Cap, Throttle Cable VM26/46 002-061
2. Cable Adjuster VM30/132 018-542
3. Nut, Cable Adjuster B30/247 002-065
4. Top, Mixing Chamber VM26/44A 002-236
5. Spring, Throttle Valve VM24/195 002-069
6. Spring Seat Plate VM26/55 –––––––
7. E-Ring, Jet Needle VM20/369 002-083
8. Jet Needle 5I14 –––––––
9. Throttle Valve (slide) 832-27043-1.5 –––––––
10. Starter Plunger Assembly VM24/774 007-796
17. Air Screw VM14/73 –––––––
18. O-Ring, Air Screw VM14/75 002-676
19. Spring, Air Screw VM15/112 002-863
20. Idler Adjuster Screw 603-16002 –––––––
21. O-Ring, Idle Adjuster Screw BV32/04 002-212
22. Spring, Idle Adjuster Screw VM26/197 –––––––
23. 3mm I.D. Vent & Overflow Hose VM17/177A –––––––
24. Pilot Jet VM22/210 Pg.212
25. Main Jet Ring VM26/538 –––––––
26. Needle Jet N-8 (864 Series) 784-111421-N-8 –––––––
27. Large Hex Main Hex 4/042 Pg.214
28. Washer, Needle Valve Seat VM26/25 002-188
29. Needle Valve Assembly 2.5 786-15005-2.5 002-892
30. Float VM24/365 007-255
31. Pin, Float BV26/22 002-107
32. Gasket, Float Bowl VM20/492 007-250
33. Float Bowl VM22/314 –––––––
34. O-Ring, Drain Plug 17.5 x 1.4 BN042/64 002-602
35. Drain Plug, Main Jet BN042/58 –––––––
36. Screw, Float Bowl 4x16mm CW2=0416 002-823
VM24-512 Standard Jetting Specifications
Carb Main Pilot Needle Jet Throttle Valve Air Jet Needle Float Mikuni Order
Size Jet Jet Jet Needle Cutaway Valve Set Height No. No.
VM24 4/042 #210 VM22/210 #40 #864 N-8 #5I14 832-27043 1.5 None 786-1500 2.5 21mm VM24-512 001-018
Mikuni VM Series Carburetors are intended for off-road
riding and racing use only. Not legal for use in California or
other locations where similar pollution laws may apply.
Float Height
21 mm
Size (mm) A B C D Total Width
VM24 35 80 116 43 76.5
Carburetor Dimensions
Mikuni VM24-512 Spigot Mount Carburetor
Sold each. Mikuni No.VM24-512.
Order No. 001-018
VM24-512 Exploded View & Parts V
