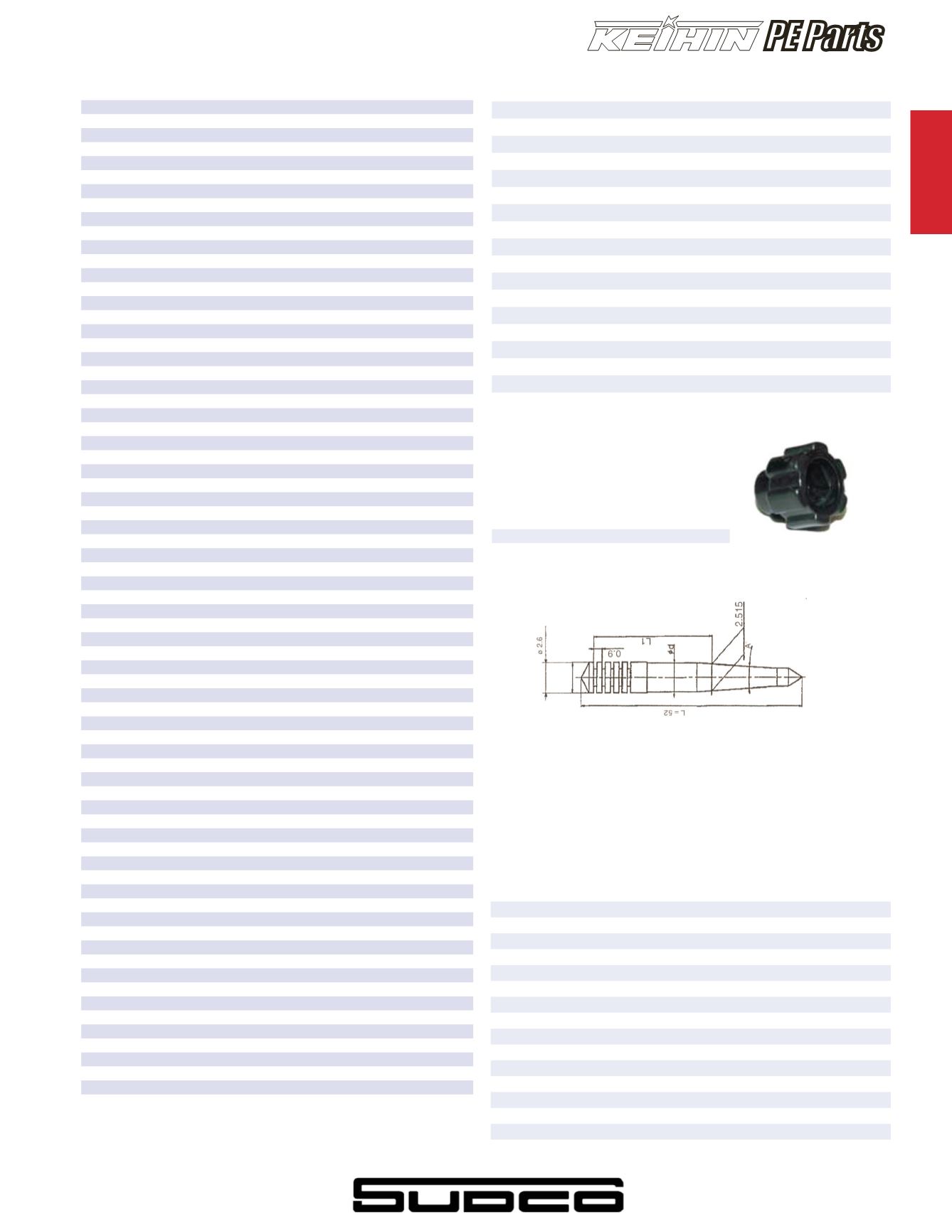

PE Replacement Parts
No. Description Application Keihin No. Order No.
1. Cap Cable Holder 20-24mm 16118-166-0040 018-002
30mm 16118-166-0040 018-002
34-38mm W1597-023-9900 018-303
2. Cable Adjuster 20-24mm W9581-59250 018-005
30mm W9581-59250 018-005
34-38mm W9581-59200 018-306
3. Nut, Cable Adjuster 20-24mm W1793-130-9900 018-008
30mm W1793-130-9900 018-008
34-38mm W1793-121-9900 018-309
4. Top 20-24mm G591-145-9900 021-565
36-38mm G591-093-9900 021-781
5. Gasket 20-24mm W1593-040-9900 018-320
26-28mm W1593-039-9900 021-798
36-38mm W1593-038-9900 021-782
6. Throttle Spring 20mm G1711-614-9900 021-566
22mm 16050-GF5-6710-M1 021-785
24mm 16050-GF5-7410-M1 021-784
36-38mm G1711-484-9900 021-783
7. Clip, T.V. Plate 20-24mm 16114-GF5-0040 021-567
26-28mm W9574-20000 018-338
36-38mm W9574-3500 018-341
8. Throttle Valve Plate 22-24mm W1506-028-9900 018-344
26-28mm W1506-027-9900 018-345
30mm W1506-018-9900 018-346
34mm W1506-019-9900 018-347
36-38mm G1506-017-9900 021-786
9. Clip, Jet Needle 20-38mm 16115-169-0040 018-033
10. Jet Needle 20-24mm G1427-36x-9900 See chart
1024-36x-9900-old number
26-28mm N427-46-xxx Pg.147
34-38mm N427-48-xxx Pg.147
11. Throttle Valve 20mm G1502-OUx-9900 ––––––
22mm G1502-OHx-9900 ––––––
24mm G1502-1Sx-9900 Pg.144
38mm G1502-04G-9900 Pg.144
12. Needle Jet 20-26mm 16164-169-0040 018-560
13. Choke Valve 26-28mm 16046-KA5-7710-M1 021-584
36-38mm 16046-KA5-7710-M1 021-584
14. Choke Lever 20-24mm 1165-031H-9900 021-568
15. Rubber Cap 20-24mm 16148-PJ7-0051 021-569
16. Choke Lever Holder 20-24mm W1551-035-9901 018-362
17. Choke Valve Spring 20-24mm W1711-403-9900 018-372
18. Choke Valve 20-24mm W1275-020-9900 018-358
19. Collar 20-24mm W1704-362-9900 021-570
20. Screw 20-24mm 93500-04012-1H 018-211
21. Spring 20-28mm 16052-KG8-9010-M1 018-382
30-38mm G1711-286-9901 018-383
22. Baffle Plate 34-38mm G1130-004-9900 021-585
23. Float Valve 20-28mm W1362-020-9901 018-389
30-38mm W1362-024-9900 021-787
24. Clip, Float Valve 20-38mm W1782-013-9900 018-104
25. Float Pin 20-38mm W9525-25250 018-670
26. Float 20-22mm W1310-067-9902 018-396
26mm W1310-067-9902 018-396
28mm W1310-080-9901 018-397
28mm W1310-080-9902 ––––––
30-36mm G1310-059-9901 021-789
38mm G1310-058-9911 021-788
27. Jet Holder 20-28mm 16168-GC4-7010-M1 018-402
30-38mm 16168-KA4-0040 018-403
28. Gasket, Float Bowl 20-28mm W1354-042-9900 018-406
30-38mm 16163-ND4-7510-M1 018-113
29. Float Bowl 20-22mm W1350-239-9903 018-409
24mm W1350-291-9901 021-791
30-38mm W1350-189-9910 021-790
30. Plug Screw O-Ring 20-38mm 16173-001-0040 018-664
31. Plug Screw 20-38mm 16162-ND4-7511-M1 018-128
32. Anchor Plate 30-38mm 16179-428-6711-M1 018-119
33. Slow Jet 20-22mm N424-21-xxx Pg.148
24mm N424-32-xxx Pg.148
26-30mm N424-21-xxx Pg.148
34-38mm N424-22-xxx Pg.148
No. Description Application Keihin No. Order No.
34. Needle Jet 20mm G1413-34A-9900 021-793
22mm 16165-GC4-7010-M1 021-794
24-28mm G1413-34A-9900 021-793
30-38mm 16164-KA5-0041 021-792
35. Main Jet 20-38mm 99101-357-xxx Pg.151
36. Clip/Pipe 20-38mm W9535-35000 018-098
37. Bowl, Vent Pipe 20-28mm 95003-07027-31 021-571
34-38mm 95003-07039-31 021-795
38. Overflow Pipe 20-28mm 95003-07030-31 ––––––
30-38mm 95003-05030-31 021-796
39. Screw, Float Bowl 20-38mm 93892-04016-18 018-122
40. Air Adjust Screw 20-22mm 16080-KG8-9010-M1 021-573
24mm W1446-135-9900 021-797
26-38mm 16080-KG8-9010-M1 021-573
41. Spring 20-38mm W1711-416-9900 018-090
42. Throttle Stop Screw 20-22mm W1536-120-9900 021-574
24-28mm W1536-105-9901 018-378
30-38mm W1536-065-9900 018-379
Mark Taper A L1 Length Diameter D Order No.
A 2º 00’ 21.98 2.485 017-700
B 2º 00’ 22.43 2.435 017-701
C 2º 00’ 22.43 2.495 017-702
D 2º 00’ 21.98 2.495 017-703
E 2º 00’ 23.78 2.445 017-704
F 2º 26’ 23.84 2.525 017-705
G 3º 00’ 23.89 2.515 017-706
H 3º 00’ 23.89 2.525 017-707
J 3º 00’ 23.89 2.535 017-708
K 3º 00’ 23.89 2.505 017-709
L 3º 33’ 27.22 2.485 017-710
N 3º 33’ 23.92 2.545 017-712
P 3º 33’ 27.22 2.475 017-713
Q 3º 33’ 27.22 2.525 017-714
R 3º 33’ 27.22 2.545 017-715
S 3º 33’ 25.72 2.475 017-716
Jet Needle selection notes: (see chart at bottom)
1. Taper and diameter are the 2 primary dimensions.
2. Larger diameter is leaner at low speeds.
3. Larger taper angle becomes richer faster as speed increases.
4. If diameter and taper are the same, larger L1 will stay leaner longer.
5. Ahigher clip position will stay lean longer.
PE20-24mm Jet Needles 1024-36 ( ) H-9900
Cable Adjuster Holder
Cable adjuster holder to be used with Keihin
PE20-28 Throttle Stop Screw (#42).
Order No. 021-799
