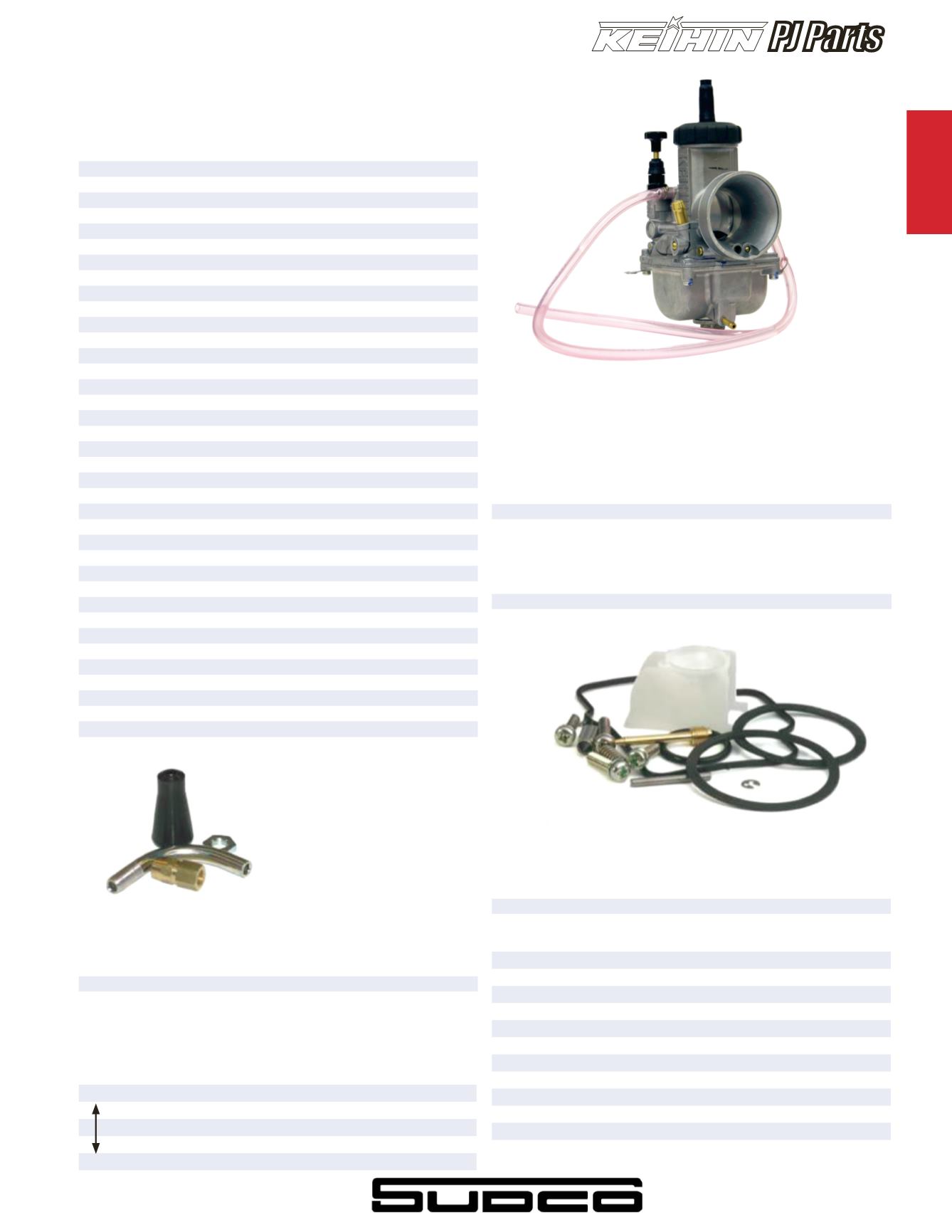

No. Description Application Keihin No. Order No.
1. Cap,Cable Adjust 34-38mm 16118-166-0040 018-002
2. Cable Adjuster 34-38mm W9581-59250 018-005
3. Nut, Cable Adjuster 34-38mm W1793-130-9900 018-008
4. Mixing Chamber,Top 34-36mm W1591-130-9910 018-011
38mm W1591-131-9910 018-012
5. Gasket, Top 34-36mm 16110-NC8-0040 018-015
38mm 16110-ND5-7610-M1 018-016
6. Throttle Spring 34mm 16050-KA3-7610-M1 018-019
36mm 16050-KA4-7710-M1 018-020
38mm 16050-KA5-6910-M1 018-021
7. Cable Holder 34-38mm 16137-KA3-7610-M1 018-024
8. Collar 34-38mm W1706-052-9900 018-027
9. Spring 34-38mm 16051-KA3-7610-M1 018-030
10. Clip, Jet Needle 34-38mm 16115-169-0040 018-033
11. Jet Needle 34-38mm N427-48-xxx Pg.147
12. Throttle Valve 34mm W1502-2J (X) -9900 see chart
36mm N502-22 (XX) -0-00 see chart
38mm N502-23 (XX) -0-00 see chart
13. Starter Valve 34-36mm 16046-KA3-7610-M1 018-085
38mm 16046-KA5-6911 018-086
14. Air Adjustment Screw 34-38mm W1446-231-9900 018-089
15. Spring 34-38mm W1711-416-9900 018-090
16. Main Jet 34-38mm 99101-357-xxx Pg.150
17. Slow Jet 34-38mm N424-21-xxx Pg.148
18. Baffler Plate 34-38mm 16185-KA3-7610-M1018-092
19. Air Vent Pipe 34-38mm 95003-07033-31 021-752
20. Clip 34-38mm W9535-35000 018-098
21. Float Valve 34-38mm W1362-019-9900 018-101
22. Clip, Float Valve 34-38mm W1782-013-990 018-104
23. Float Pin 34-38mm W9525-25250 018-670
24. Float 34-38mm W1310-079-9921 018-110
25. O-Ring, Float Bowl 34-38mm 16163-ND4-7510-M1018-113
26. Float Bowl 34-38mm W1350-289-9910 018-006
27. Anchor Plate 34-38mm 16179-428-6711-M1 018-119
28. Screw, Float Bowl 34-38mm 93892-04016-18 018-122
29. Plug Screw O-Ring 34-38mm 16173-001-0040 018-664
30. Main Jet Plug Screw 34-38mm 16162-ND4-7511-M1018-128
31. Overflow Tube 34-38mm 95003-05027-31 018-131
Exploded
View No. Qt Contents
5. 1 Gasket, Top (PJ34, PJ36)
1 Gasket, Top (PJ38)
10. 1 Clip, Jet Needle
14. 1 Air Adjustment Screw
15. 1 Spring
18. 1 Baffler Plate
21. 1 Float Valve
22. 1 Clip, Float Valve
23. 1 Float Pin
25. 1 O-Ring, Float Bowl
28. 4 Screw, Float Bowl
29. 1 Plug Screw O-Ring
Cutaway PJ34 PJ36 PJ38
W1505-2Jx-9900 N502-22xx0-01 N502-23xx0-01
Rich 4.0 018-040 018-054 018-068
5.0 018-042 018-056 018-070
6.0 (Std) 018-044 018-058 018-072
7.0 018-046 018-060 018-074
Lean 8.0 018-048 018-062 018-076
Sudco PJ Carburetor Rebuild Kit
Sudco rebuild kit for the Keihin PJ34-38 contains GENUINE Keihin
replacement parts. Sold as a kit.
Order No. 020-115
90° Cable Adjuster Assembly
This adjuster has threads on one end, the other end swivels.
Includes rubber cap, locknut, cable adjuster and 90° tube.
Works on Keihin and Mikuni carburetor caps.
Order No. 007-731
Keihin PJ Carburetor
Oval slide PJ34 carburetor for ATV and Offroad motorcycles.
The oval slide enables the engine to respond much quicker than with
a conventional round slide carburetor.
Carburetor Description/Mark Order No.
PJ34 Standard PJ34/67R 016-039
Use the following part number when ordering for special jetting request.
Please note: Special Set PJ carburetor is pre-jetted to your request
or specific application. Please specify exact jetting details for each
special set carburetor ordered.
PJ34 Special Set PJ34/67R 016-180
PJ Throttle Valve Chart
PJ Replacement Parts
Keihin Part No. Highlighted in BOLD RED are included in rebuild kit.
Carb Top Kit 34-36mm 018-975
Includes the following parts:
018-002, 018-005, 018-008, 018-011, 018-015.
PJ Parts
