No. Description
Application Keihin No.
Order No.
18.
Stop Screw
All
1034-836-2000
021-025
19.
Throttle Valve
28-33mm
N501-18C02
021-300
35-41mm
N501-20C00
021-325
20.
Roller
All
1119-803-7002
021-027
21.
Vacuum Release
28-33mm
1609-801-2101
021-029
Plate
35-41mm
1609-802-2101
021-030
22.
Seal
28-33mm
1099-816-6001
021-032
35-41mm
1099-817-6001
021-033
23.
Jet Needle
28-33mm
N427-90-xxx
Pg.118
35-41mm
N427-OC-xxx
Pg.118
24.
Clip for Jet Needle All
0403-802-1000
018-616
25.
Needle Set Screw All
1421-801-2000
021-034
26.
Main Nozzle
Downdraft
1154-835-2100
021-037
Horizontal
1154-838-8000
021-036
27.
Main Jet
All
99101-357-xxx
Pg.150
28.
Slow Jet
All
N424-25B-xxx
Pg.148
30.
Slow Air Jet
All
99101-124-xxx
Pg.149
99101-ZF5-xxx (old part no.)
Float Height
9mm
FCR Single Replacement Parts
Applications:
Downdraft and Horizontal Single Carburetors.
FCR28, FCR32, FCR33, FCR35, FCR37, FCR39, FCR41.
No. Description
Application Keihin No.
Order No.
5.
Top Cover
28-33mm
1030-850-2000
021-002
35-41mm
1030-855-2000
021-003
6.
Gasket, Top Cover
28-33mm
1031-805-2000
021-005
35-39mm
1031-806-2000
021-006
41mm
1031-807-2000
021-007
7.
Screw M4 x 12
All
0136-806-1100
021-700
8.
Screw M4 x 10 x 0.7 All
0136-807-1100
021-008
9.
Screw M4 x 8
All
0136-808-1100
021-010
10.
Cable Mount Brackets
See Page 112 for photos and apps.
10A.
Cable Mount Bracket All
1190-A33-2300
021-549
10B.
Cable Mount Bracket All
1190-981-2100
021-129
11.
Screw, Bracket
All
0136-803-1100
021-012
12.
Throttle Shaft
All
5025-960-2101
021-701
13.
Collar
All
1118-958-7000
021-014
14.
Coil Spring
All
1305-942-2000
021-253
15.
Washer
All
0301-092-7000
021-018
16.
Link Arm
28-33mm
1061-815-2100
021-020
35-41mm
1061-816-2100
021-021
17.
Hexagon Nut
All
0208-811-1100
021-023
Part no. #30, Slow Air Jet can be replaced with Slow Air Screw,
see Part no. #129 and #130 in drawing.

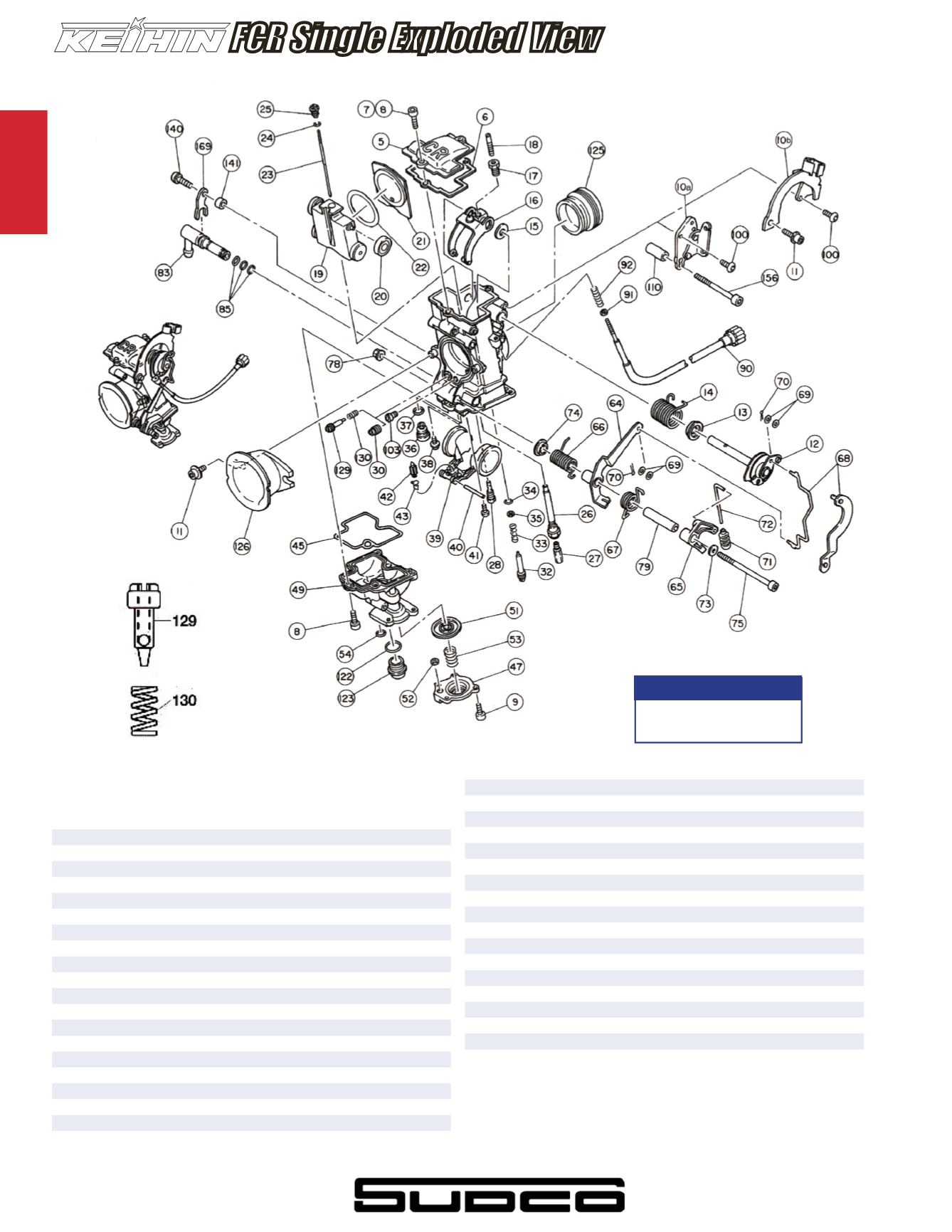

FCR Single Exploded View
