No. Description Application Keihin No. Order No.
32. Pilot Screw 6 ° taper, All N446-05A00 021-039
(*Option) 9 ° taper, N446-05C00 021-038
33. Spring, Pilot Screw All 1290-812-2001 021-041
34. O-Ring, Pilot Screw All 16075-KG8-9010 021-043
M1
35. Washer, Pilot Screw All 0301-803-2000 021-045
36. Valve Seat Size
All Downdraft FCR - Use with Float Valve 018-676
All Downdraft 1.00 N361-03-xxx 021-218
All Downdraft 1.20 N361-03-xxx 021-219
All Downdraft 1.40 N361-03-xxx 021-220
All Downdraft 1.60 N361-03-xxx 021-221
All Downdraft 1.80 N361-03-xxx 021-222
All Downdraft 2.00 (Std) N361-03-xxx 021-223
All Downdraft 2.20 N361-03-xxx 021-224
All Downdraft 2.40 N361-03-xxx 021-225
All Downdraft 2.60 N361-03-xxx 021-226
Valve Seat Size
All Horizontal FCR - Use with Float Valve 018-504
All Horizontal 3.20 (Std) N361-04-xxx 021-240
All Horizontal 3.40 N361-04-xxx 021-241
All Horizontal 3.60 N361-04-xxx 021-242
All Horizontal Singles 3.80 (Std) N361-04-xxx 021-243
All Horizontal 4.00 N361-04-xxx 021-244
37. O-Ring, Valve Seat All 16958-397-7710 021-047
M1
38. Screw, Valve Seat Downdraft 0118-804-1100 021-049
Horizontal 0118-806-1100 021-250
39. Float All 1052-837-2200 021-051
40. Arm Pin All W9525-25250 018-670
41. Screw, Arm Pin All 93500-04008-1H 021-053
42. Float Valve (Needle Valve)
Downdraft (1.0 - 2.6) All 16155-ZG8-L100 018-676
Horizontal (3.2 - 4.0) All 1062-814-2100 018-504
43. Clip, Float Valve All 0405-019-1000 018-674
45. O-Ring, Float Bowl All 1202-846-6000 021-055
47. Cover, Accel. Pump All 1230-826-2002 021-057
49. Float Bowl Downdraft 1050-868-2100 021-258
Float Bowl Horizontal 1050-886-2100 021-264
51. Diaphragm All 1201-858-2400 021-065
52. U-Ring, Accel. Pump All W9353-3600 021-067
53. Spring, Accel. Pump All 1300-142-2000 021-069
54. O-Ring, Accel. Pump All 16178-548-0040 021-071
64. Link Lever 28-33mm 1100-868-2100 021-073
35-41mm 1100-870-2100 021-074
65. Link Lever Downdraft 1100-867-7001 021-076
Horizontal 1100-872-7000 021-252
66. Coil Spring #1 All 1305-933-2000 021-078
67. Coil Spring #2
Downdraft 28-33mm 1305-934-2000 021-080
Downdraft 35-41mm 1305-939-2000 021-081
Horizontal All 1305-952-2000 021-254
68. Rod, Link Lever All 1458-825-2000 021-083
Rod, Link Lever GSX-R 1458-827-2000 021-256
liquid cooled
Flat, Link Arm 1061-818-2100 021-022
69. Washer, Rod Link All 0301-136-7000 021-085
70. Pin, Link Lever All W9251-12081 021-087
71. Rubber Cap All 1028-825-2001 021-089
72. Rod Downdraft 1458-826-2000 021-091
Horizontal 1458-829-2000 021-255
73. Washer, Link Lever All W1795-097-9900 021-856
74. Collar, Link Lever All W1704-241-9900 021-095
75. Bolt All 0136-818-1100 021-702
78. Nut All 0208-810-1100 021-703
79. Collar All 1118-959-2000 021-704
83. Fuel L-Joint Downdraft 1074-848-2100 021-251
Fuel L-Joint Horizontal 1074-848-2300 021-854
Keihin Flat CR Downdraft
Application Order No.
28-33 FCR- D 018-865
35-39 FCR- D 018-866
41 FCR- D 018-867
Keihin Flat CR Horizontal
28-33 FCR- H 018-865
35-39 FCR- H 018-870
41 FCR- H 018-871
No. Description Application Keihin No. Order No.
85. O-Ring, Fuel L-Joint All W9351-13057 018-755
90. Idle Speed Screw All 1034-837-2100 021-099
91. Washer All 0301-078-1200 021-101
92. Spring All 1300-112-2000 021-103
100. Screw, Bracket All 0136-804-1100 021-105
103. Main Air Jet 35-41mm 99101-393-xxx Pg.150
110. Collar N704-05017 021-563
122. O-Ring, Drain Bolt All 16075-935-0060 021-109
123. Drain Bolt All 1018-804-2000 021-111
125. Mounting Adapters (Spigots) Pg.111-112
126. Velocity Stacks - Sold each
Blue, 50mm long 28-33mm 1130-806-7002 021-113
Blue, 50mm long 35-41mm 1130-807-7000 021-114
Red, 30mm long 35-41mm 1130-808-7000 021-115
129. Slow Air Screw All 1014-817-2000 021-230
130. Spring All 16052-KM4-0040 021-235
140. Bolt N114-06161 021-705
141. Collar 1118-984-2000 021-706
156. Bolt 0136-812-1100 021-150
169. Bracket 1190-A11-2000 021-850

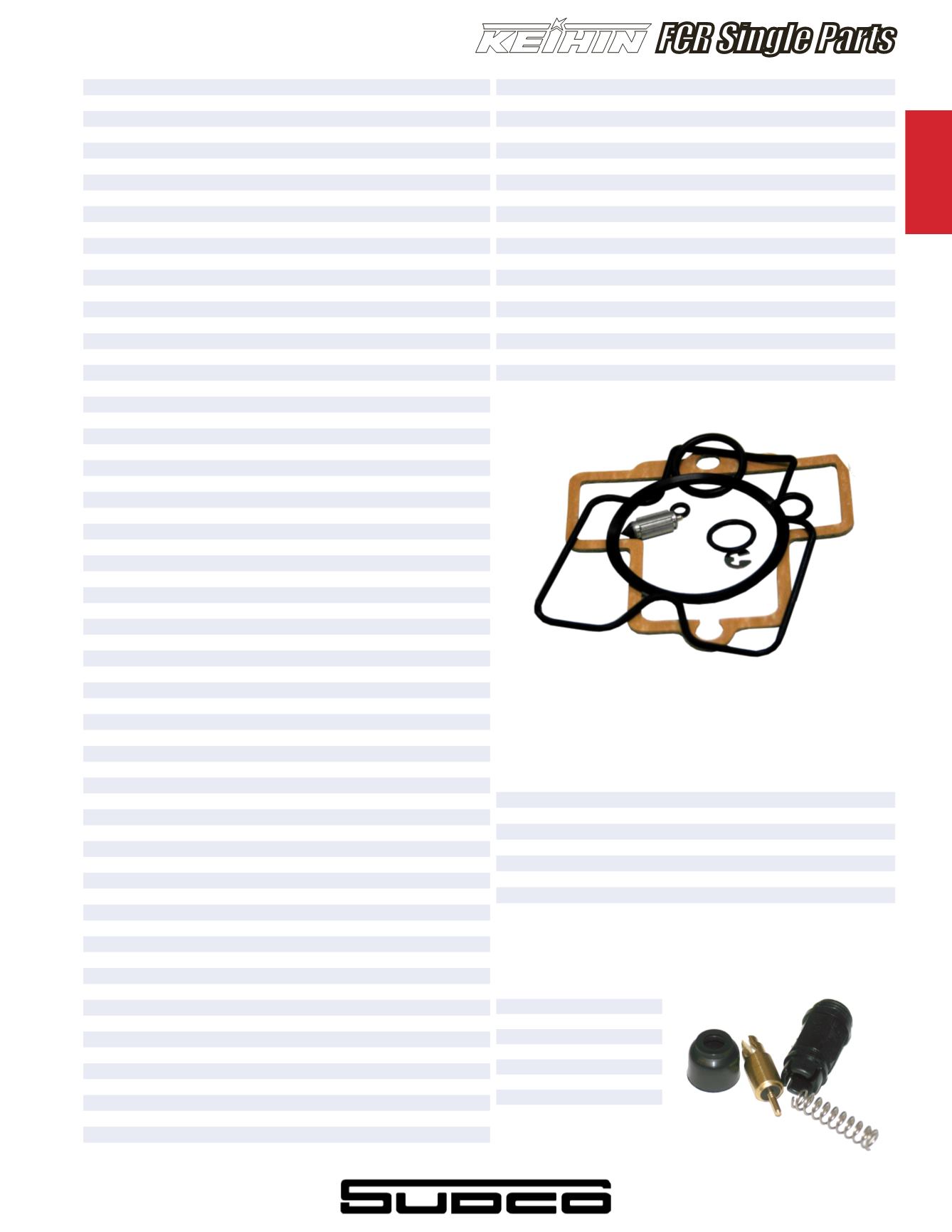

Sudco FCR Carburetor Rebuild Kits
Each kit contains genuine KEIHIN parts to rebuild one Keihin
Flat-CR Smoothbore carburetor body. Order per kit needed, one or
more depending on number of carbs on bike. Made in Japan.
H - Horizontal Carburetor D - Downdraft Carburetor
Sudco FCR Cable Choke Assembly
For FCR single carburetor. Sold as an assembly.
Order No. 018-977 Contains
the following parts:
Qt Description
1 Starter Valve
1 Coil Spring
1 Cap
1 Rubber
018-866
FCR Single Parts
