Non Air Striker
Size (mm)
Main Slow Jet
Throttle Float Order
Jet
Jet Needle Valve Height No.
PWK33/S46
#165 #52 48-CGL 6.0
16mm
016-148
PWK35/70R
#160 #68 48-DGK 6.0
16mm
016-150
PWK38/71R
#172 #58 48-DEG 6.0
16mm
016-153
PWK39/72R
#160 #60 48-DGH 6.0
16mm
016-155
PWK41 Pro-Series #160 #60 48-DGH 6.0
16mm
016-156
Quad Vent/Air Striker
PWK35
#160 #48 48-DEK 4.5
16mm
016-160
PWK36 Quad Vent #165 #55 48-DGJ 5.0
16mm
016-163
PWK38
#170 #55 48-DDJ 7.0
16mm
016-167
Size (mm)
A
B
C
D
PWK33
42
59
91
164.3
PWK35
42
59
91
163.3
PWK36
46
63
91
176.6
PWK38
46
63
91
171.6
PWK39
46
63
91
171.6
PWK41
46
63
91
171.6
PWK Standard Jetting Specifications
Quad Vent/Air Striker
*See part numbers
11, 12, 14, 15, 16,19, 27, 28, 31 from the drawing
to the left.
Non Air Striker PWK33, 35, 36, 38, 39, 41
Float Height
16mm
A
B
C
D

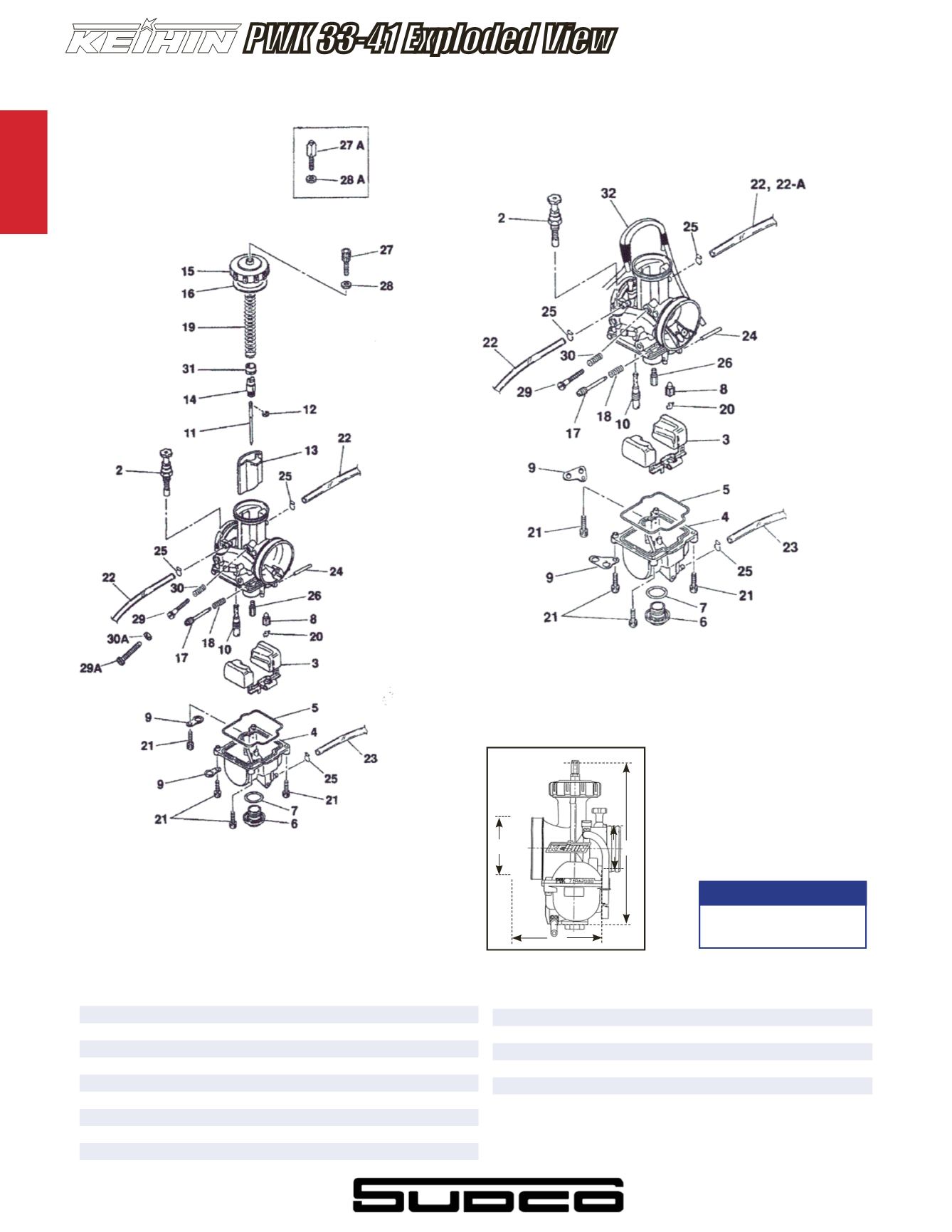

PWK 33-41 Exploded View
NOTE:
Do not remove parts that are not shown
on this exploded view.
NOTE:
Do not remove parts that are not shown
on this exploded view.
Carburetors are intended for
off-road riding and racing
use only. Not legal for use in
California or other locations
where similar pollution laws
may apply.
