139
WEB: E-MAIL:
No. Description Keihin No. Order No.
1. Top Cap 1030-840-2000 018-528
2. Gasket, Top 16110-ND5-7610-M1 021-518
3. Spring, Throttle 1290-921-2000 018-531
4. Collar, Throttle Spring 1118-A35-7000 021-524
5. Holder, Cable 1101-804-2000 018-526
6. Clip, Jet Needle 16155-169-0040 018-033
7. Jet Needle W956R-XXXX Series
Jet Needle W956R-1367J 017-170
Jet Needle W956R-1368G 017-165
Jet Needle W956R-1368J 017-171
Jet Needle W956R-1369G 017-166
Jet Needle W956R-1369J 017-172
Jet Needle W956R-1370G 017-167
Jet Needle W956R-1370J 017-173
Jet Needle W956R-1371G 017-168
Jet Needle W956R-1371J 017-174
Jet Needle W956R-1372G 017-169
Jet Needle W956R-1372J 017-175
8. Throttle Valve N502-17x-02 Pg.137
9. Cap, Rubber –––––––––––– –––––––
10. Clip, Vent Bowl Pipe –––––––––––– –––––––
11. Pipe (Hose), Black Vent Bowl –––––––––––– –––––––
12. T-Joint 16143-KR3-7510-M1 021-528
13. Pipe (Hose), Short Blk.Vent Bowl –––––––––––– –––––––
14. Float Pin W9525-25250 018-670
15. Main Jet 99101-357-xxx Pg.150
16. Float Valve (Needle Valve) 16155-ZG8-L100 018-676
W9522-53001 (old number)
17. Clip, Float Valve 0405-019-1000 018-674
18. Float W1310-079-9921 018-110
19. Gasket, Float Bowl 16163-ND4-7510-M1 018-113
20. Float Bowl Comp. Z050-355-000 021-513
21. Screw, Float Bowl 4 x 16mm N114-04163 021-519
22. O-Ring, Plug Screw 16173-001-0040 018-664
23. Plug Screw, Bowl 1018-807-2000 021-514
28. Pilot Jet N424-21-xxx Pg.148
29. Spring, Air Adjust W1711-416-9900 018-090
30. Screw, Air Adjust W1446-231-9900 018-089
31. Screw, Idle Adjuster 1034-867-2001 021-522
32. Spring, Idle Adjuster 1290-A04-2000 021-523
33. Pipe (Hose), Black Vent Bowl –––––––––––– –––––––
34. Valve, Starter (choke plunger) –––––––––––– 021-512
35. Spring, Choke 1290-A05-2000 021-526
36. O-Ring, Choke 0901-069-6000 021-527
37. Cap, Starter –––––––––––– –––––––
Exploded
View No. Qt Contents
2. 1 Gasket, Top Cap
4. 1 Collar, Throttle Spring
6. 1 Clip, Jet Needle
16. 1 Float Valve (Needle Valve)
17. 1 Clip, Float Valve
19. 1 Gasket, Float Bowl
21. 4 Screw, Float Bowl 4 x 16mm
29. 1 Spring, Air Adjust
30. 1 Screw, Air Adjust
SudcoPWKSnowmobileCarburetor RebuildKit
Sudco rebuild kit for the Keihin PWK39 snowmobile carburetor
contains GENUINE Keihin replacement parts. Sold as a kit.
Order No. 020-111

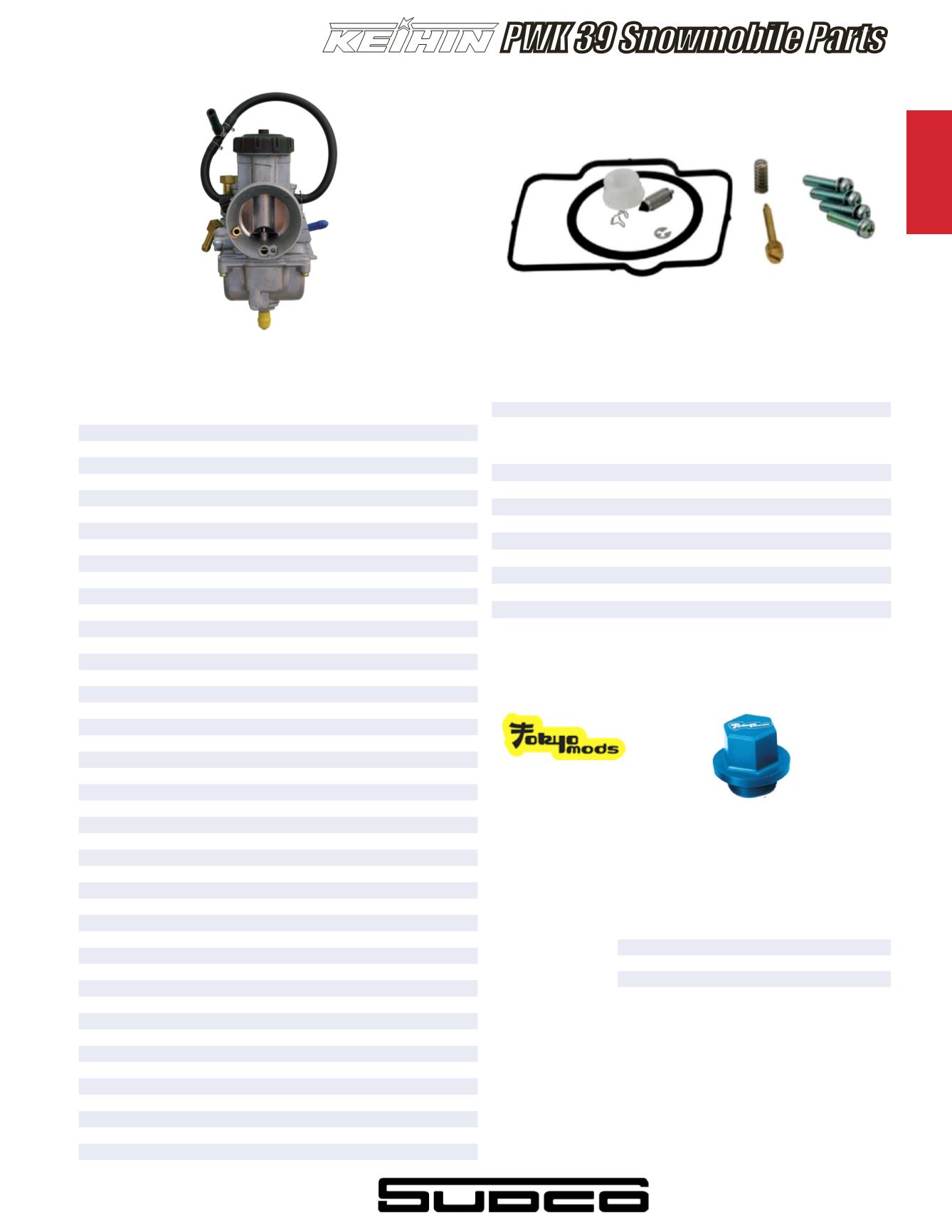

PWK39 Snowmobile Replacement Parts
Keihin Part No. Higlighted in BOLD RED are included in rebuild kit.
Applications: Polaris models with PWK39 carburetor.
600XC, 600RMK, 700RMK, 700SKS, 700XC
Tokyomods Drain Plug
Keeps all fuel contaminates including water away from the main jet,
helps control fuel slosh and bogging, won’t get distorted from over
tightening, and easy to reach for quicker jetting changes. Machined
from 6061 aluminum. Also fits Keihin FCR-MX, PJ, PWK, PWM, and
PE carbs.
Application Color Order No.
FCR-MX, PJ, PWK,
PWM, PE
Red 024-230R
Blue 024-230B
Black 024-230K
Mag 024-230M
PWK 39 Snowmobile Parts
