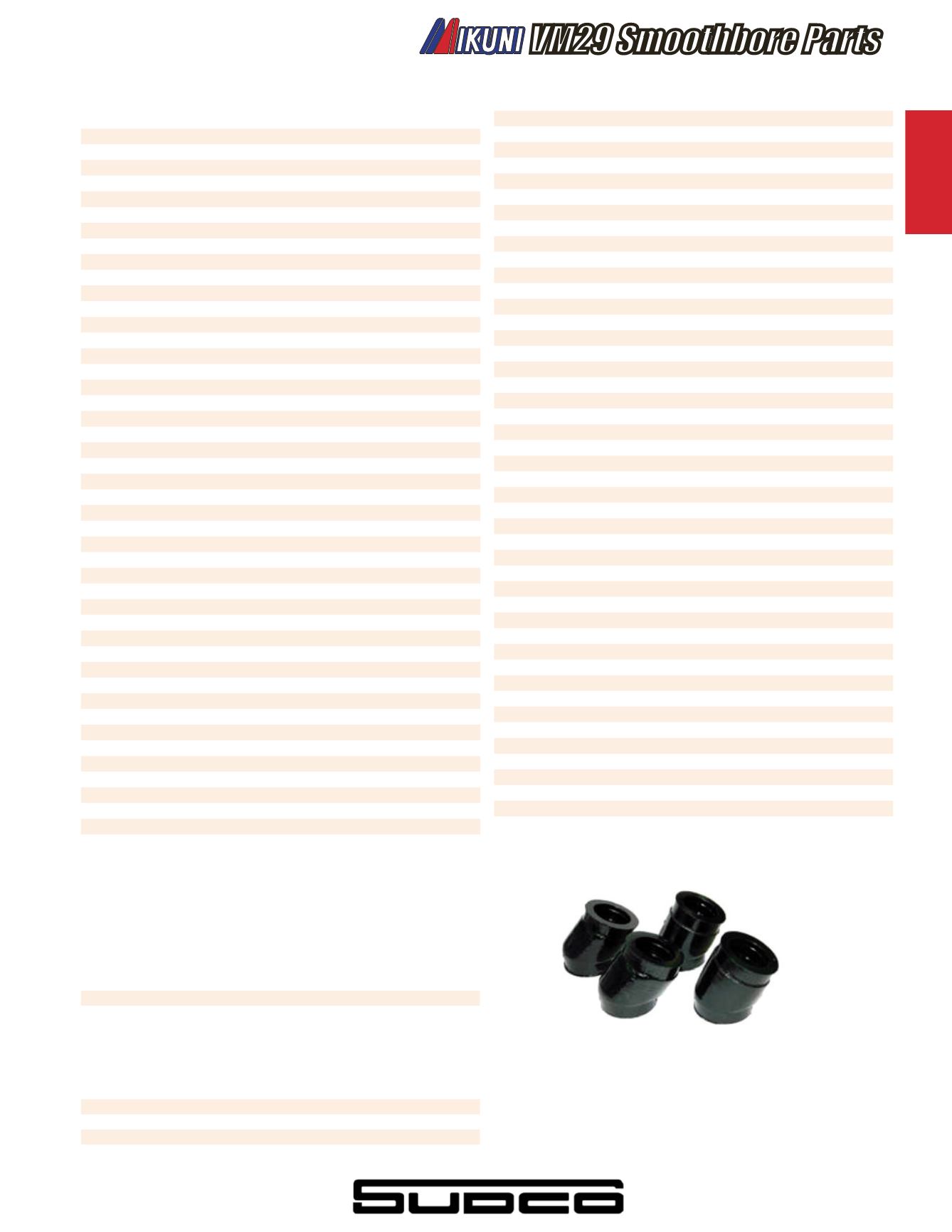

VM29 Smoothbore Replacement Parts
• Lined through part numbers are no longer available.
No. Description Mikuni No. Order No.
1. Mixing Body VM29SS1/01B –––––––
2. Mixing Body VM29SS2/01B –––––––
3. Mixing Body VM29SS3/01B –––––––
4. Mixing Body VM29SS4/01B –––––––
5. Seal, Rubber VM24/489 –––––––
6. End Cap, Rubber VM28/559 –––––––
7. O-Ring BV30/40 002-617
8. Fuel Joint VM26/268 007-748
9. Fuel Joint VM26/269 –––––––
10. Hose, Rubber VM26-308 –––––––
11. Hose, Rubber Air Vent VM15/217 –––––––
12. Air Jet BS30/97 Pg.213
13. Screw with Lock Washer CW2-0307-G 007-494
14. Screw, Starter Lever VM28/269 –––––––
15. Spring, Starter Lever VM28/293 002-665
16. Washer (Steel) VM28/449 002-664
17. Washer (Nylon) VM28/268 –––––––
18. Shaft, Starter VM24/462 –––––––
19. Screw, Starter Lever VM28-360 –––––––
20. Starter Lever VM26/435 002-660
21. Filter Screen VM18/233 002-606
22. Washer, Valve Seat B34/52-0.5 002-187
23. Needle Valve Assembly (2.5) N122.032-2.5 002-503
Needle Valve Assembly (2.8) N122.032-2.8 002-504
24 . Float Pin BV26/22 002-107
25. Float Assembly. VM26/260 002-501
26. Gasket, Float Chamber (Bowl) VM26/258 002-502
27. Float Chamber (Bowl) VM29/20 100 –––––––
28. Screw with Lock Washer CW2=0416-B 002-615
29. O-Ring, Float Bowl Drain Plug VM28/254 002-531
30. Drain Plug, Float Bowl VM28/253 002-526
31. E-Clip, Starter Plunger KP/13 002-673
32. Bushing, Nylon VM28/450 –––––––
33. Cap, Starter Plunger Rubber VM20/455 002-084
34. Fitting, Starter Plunger VM28/359 –––––––
35. O-Ring, Starter Plunger VM18/249 002-672
36. Spring, Starter Plunger VM16/42A 002-671
37. Starter Plunger VM24/510 002-670
38. Pilot Air Screw VM26/288 002-506
39. O-Ring, Pilot Air Screw VM14/75 002-676
40. Spring, Pilot Air Screw M12F/46A 002-181
41. Pilot Jet VM22/210 Pg.212
42. Needle Jet O-6 (Std) #261 Series 003-535
43. Main Jet N100.604 Pg.214
44. Throttle Shaft VM29/11 002-513
45. Lever, Throttle Shaft VM24/533 –––––––
* Please Note: The following is for parts reference only. This Mikuni carburetor is no longer in production.
No. Description Mikuni No. Order No.
46. Spring, Throttle Return VM24/536 –––––––
47. E-Ring BSW28/70 002-355
48. Ring, Throttle Lever VM24/532 –––––––
49. Screw, Idle Adjusting VM26/436 002-537
50. Spring, Idle Adjusting BNO42/31 002-538
51. Screw, Throttle Bracket C5-510 –––––––
52. Bracket, Throttle VM24/466 –––––––
53. Screw with Lock Washer CW2=0514-B 002-516
54. Plate VM28/498 002-517
55. Spring, Shock BN38/341 007-491
56. Screw, Throttle Adjuster N115.053 –––––––
57. Spring, Throttle Adjuster N110.209 002-655
58. Screw, Back Plate C5-0614 –––––––
59. Back, Plate VM24/460 –––––––
60. Bracket, Throttle Spring VM24/513 002-533
61. Screw, Throttle Spring Bracket CW2=0514-B 002-516
62. Screw with Spring Washer CW2=0414 002-522
63. Cover, Top (Mixing Chamber) VM24/507 –––––––
64. Gasket, Top Cover VM28/549 002-524
65. Bolt VM28/230 002-519
66. Lock Washer W4=05-B –––––––
67. Cap Screw VM29/04 –––––––
68. Spring B21/20 –––––––
69. Lock Washer Plate VM28/233 –––––––
70. Lever Pull VM28/554 –––––––
71. Pin (Top) VM28/105 –––––––
72. Pin (Bottom) VM20/05 –––––––
73. Plate VM20/06 –––––––
74. Connector VM20/07 –––––––
75. Adjusting Screw VM28/593 –––––––
76. Bolt, Link Lever B2-0416 002-539
77. Nut N3=05 –––––––
78. Plate, Set VM28/594 –––––––
79. Spring VM28/592 –––––––
80. Link Lever Assembly VM29/17 –––––––
81. Screw with Lock Washer CW2=0305 002-527
82. Bracket, Connecting VM29/08 –––––––
83. Pin, Jet Needle Retaining VM29/14 –––––––
84. Pin, Jet Needle Retaining VM20/369 002-083
85. Jet Needle J8-5DL31 002-268
86. Throttle Valve 1.5 VM29/15 003-168
Throttle Valve 2.0 VM29/15 003-169
Throttle Valve 2.5 VM29/15 003-170
87. Jet Block VM29/10 –––––––
88. Gasket, Jet Block VM29/13 002-535
89. Warning Tag VM33/78 –––––––
Cutaway Mikuni No. Order No.
1.5 VM29/15 003-168
2.0 VM29/15 003-169
2.5 VM29/15 003-170
VM29 Throttle Valves
No.86 in exploded view.
Size Mikuni No. Order No.
2.5 N122.032-2.5 002-503
2.8 N122.032-2.8 002-504
VM29 Needle Valve Assembly
No.23 in exploded view.
CB750 Intake Manifolds for SOHC 005-026.
Use when mounting VM29 smoothbores.
Honda CB750 Intake Manifolds
