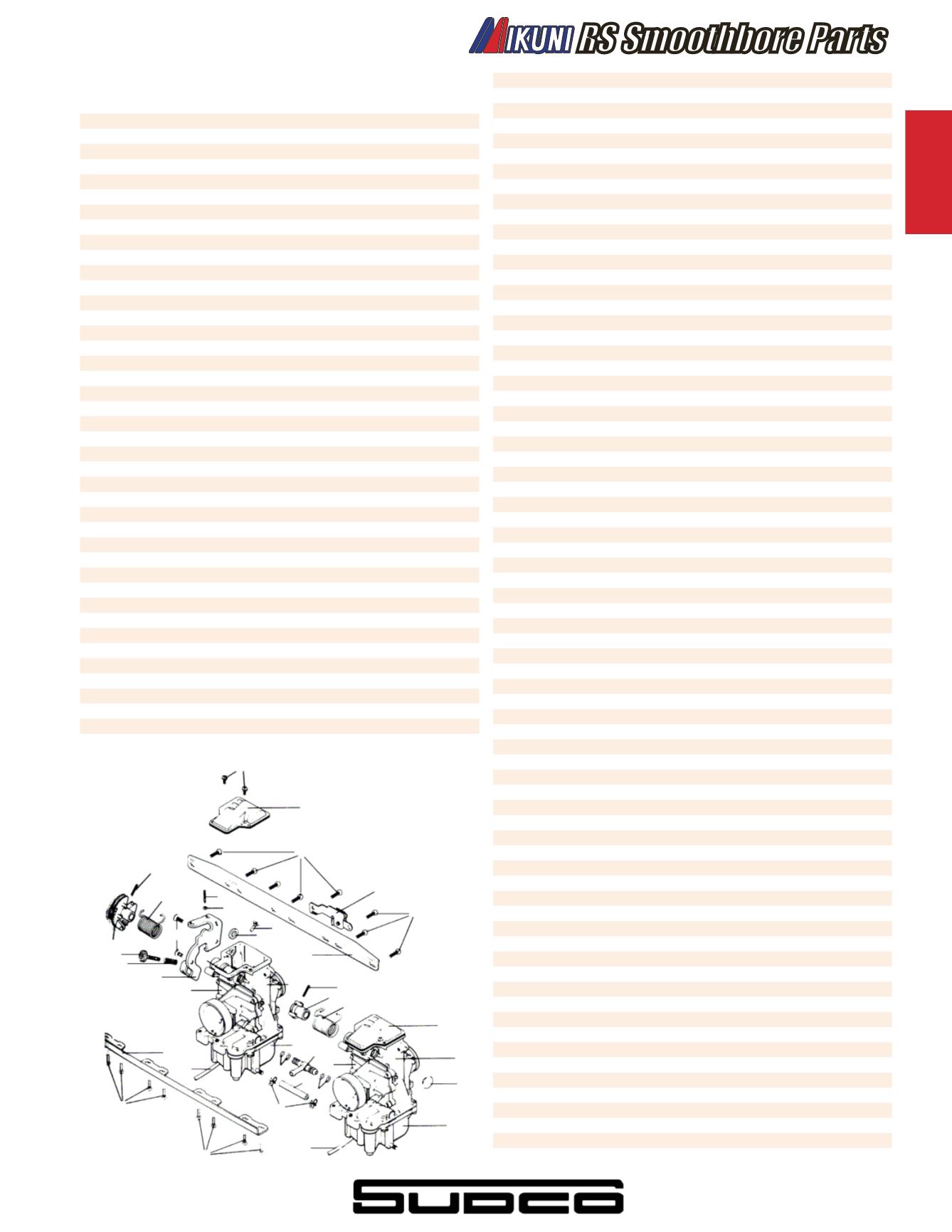

RS Smoothbore Replacement Parts
• Lined through part numbers are no longer available.
No. Description
Mikuni No.
Order No.
8.
Float Chamber Body
TM36/75
–––––––
9.
Air Funnel Body
TM36/27A
–––––––
10.
Air Funnel Body
TM36/27B
–––––––
11.
Clip, T.V. Lever
TM27/05A
–––––––
12.
E-Ring, T.V. Lever
BSW28/70
002-355
13.
Washer, T.V. Lever
M10/56
002-632
14.
Packing, T.V. Lever
B40I/10
002-629
15.
Plate, T.V. Lever
TM27/04
–––––––
16.
Ring, T.V. Lever
TM29/65
–––––––
17.
Screw, Sync. Lock
C5=0518
007-117
18.
Ring, Sync. Adjust
TM36/06
007-118
19.
Gasket, Top Cover
TM36/39
007-119
20.
Top Cover, Carb
TM36/59
–––––––
21.
Lever Ass’y., T.V. #1 & #2
TM36/51
–––––––
22.
Gasket, A/Funnel
TM36/42
007-658
23.
Screw, 2.5mm Allen
739-13001
007-123
24A
. E-Ring, RS34, RS36 Needle
VM20/369
002-083
24B
. E-Ring, RS38, RS40 Needle
BS32/126
002-455
25A.
Washer, RS34, RS36 Needle Clip
VM26/315
007-124
25B.
Washer, RS38, RS40 Needle Clip
826-03002
007-267
26.
Connector Plate, T.V.
TM36/54
–––––––
27A.
Throttle Valve 2.0, RS34, RS36
Mikuni only
–––––––
27B.
Throttle Valve 2.0, RS38, RS40
Mikuni only
–––––––
28.
O-Ring, Pilot Fuel Screw
N133.037
002-858
29.
Washer, Pilot Fuel Screw
VM12/33
002-856
30.
Spring, Pilot Fuel
N133.206
007-137
31.
Screw, Pilot Fuel
604-26003
007-138
32.
O-Ring, F.C.B. #1-3-4
616-94020
007-140
33.
Jet Needle
9 Series
Pg.164
34.
Pilot Jet
VM28/486
Pg.212
35.
O-Ring, Float Bowl Drain Plug
VM28/254
002-531
36.
Main Jet
N100.604
Pg.214
37.
Needle Jet #568 Series
784-13002
Pg.207
38.
Float Assembly
859-32011
007-141
39.
Pin, Float
VM30/160
002-605
40.
Needle Valve Assembly
N149.040
Pg.164
41.
O-Ring, Needle Valve
KV/10
002-709
42.
Filter, Needle Valve
VM18/233
002-606
43.
Main Air Jet (Plugged)
BS30/97
002-149
44.
Screw, Crank Bracket
C8=0512
–––––––
45.
Lever Assembly, T.V. #3 Carb
TM36/57
–––––––
46.
Screw, Lever Lock
C5=0514
007-625
No. Description
Mikuni No.
Order No.
47.
Packing, Shaft
VM28/174
–––––––
48.
Hexagon, Locknut
VM18/267
–––––––
49.
Plate, Needle Retainer
TM36/12
–––––––
50.
Screw, T.V. Plate
C2-0310
–––––––
51.
Spring, Starter Shaft
B21/29
007-155
52.
Ball, Starter Shaft
B21/18
007-156
53.
Plunger, Starter
N151.038
007-747
54.
Spring, Starter
VM16/42
002-671
55.
Guide Holder, Starter
640-12002
–––––––
56.
O-Ring, Starter
N138.198
007-160
57.
Cap, Starter
N106.211
–––––––
58.
Starter Jet
VM17/1002
Pg.213
59.
O-Ring, A/P Nozzle
N124.063
007-163
60.
Plug, A/P Nozzle
TM29/14
007-164
61.
Pump, Nozzle (STD)
TM36/43-03 (45)
007-165
TM36-43-05 (55)
007-166
TM36-43-08 (70)
007-167
62.
Screw, Start Bracket
N158.052
002-659
63.
Lever, Start Shaft
N178.656
–––––––
64.
Bracket, Bell Crank
TM36/37D
–––––––
65.
Adjuster Screw, A/P
TM36/48A
007-168
66.
Lever Assembly, Bell Crank
TM36/31
–––––––
67.
Hexagon Nut, A/P
N2-03-B
–––––––
68.
Pin, Bell Crank
N138.019
007-171
69.
Adjuster, Idle
739-55003
007-490
70.
Spring, Idle Adjuster
N110.209
002-655
71.
Cap, Vacuum Fitting
N148.013
002-646
72.
Spring Clip, Vacuum Fitting
BVK28/128
–––––––
73.
Screw, Needle Valve Holder
VM13/216
007-174
74.
Shaft Assembly, Starter
TM36/34A
–––––––
75.
Pan Head Screw
C2=0508-B
002-648
76.
Flat Head Screw
C5=0514
007-625
77A.
Shaft, Throttle B/C #3
700-17011
002-904
77B.
Shaft, Throttle B/C #1
700-17012
002-905
77C.
Shaft, Throttle B/C #3
700-17013
002-906
78.
Screw, Top Cover
CW2=0408
007-175
79.
Spring, Throttle Return
TM36/46A
007-204
80.
Lever, Throttle Return Spring
TM36/33
–––––––
81.
Cap, Shaft End
TM33/36A
–––––––
82.
Screw, Air Funnel
VM38/133B
002-749
83.
Hose, Fuel Connect
888-44003
007-180
84.
Inlet, Fuel “T”
791-23018
–––––––
85.
O-Ring, Fuel Joint
616-23002
007-182
86.
Hose, A/P Fuel
888-4404
–––––––
87.
Joint, Fuel
792-20014
007-184
87A.
Joint, Fuel
792-20013
007-183
For RS36-D3, RS38-D19, RS40-D1
88.
Clip, Fuel Hose
E100729-BB
–––––––
89.
Screw, Bracket
C2=0512-B
002-628
90.
Pilot Air Jet
BS30/97-0.8
Pg.213
91.
Lever, A/Pump
TM36/17
007-292
92.
Pin, A/Pump Locate
BN38/43
007-617
93.
O-Ring, A/Pump
B30-205
007-188
94.
Lever, A/Pump
TM36/18
007-189
95.
Spring, A/Pump
TM36/45
007-190
96.
Plate, Top Bracket
TM36/35
–––––––
97.
Rod, A/Pump
TM36/44
007-192
98.
Spring, A/Pump Adjust
M12F/46A
002-181
99.
Screw, A/Pump Adjust
MC-0316-B
007-193
100.
Hexagon Nut, A/Pump Adjust
N3=03-B
007-194
101.
Cap, A/Pump Rubber
TM36/64
007-195
102.
Plate, Lower Bracket
TM36/36
–––––––
103.
O-Ring, F.C.B. A/Pump
616-94021
007-197
104.
Plunger, A/Pump (12mm)
TM36/60A
007-198
105.
Spring, A/Pump (12mm)
VM14SC13/89
007-200
106.
Screw, Float Bowl
C2=0412-B
007-201
107.
Plug, Float Bowl Drain
TM32/41
007-646
108.
Ring, A/Pump Spring
E204.040
–––––––
109.
Hose
888-23026
007-608
110.
Lever, Starter Cable
TM36/63
007-205
111.
Spring, Bracket
730-06027
007-206
112.
Bracket, Cable
TM36/61
007-207
