Float Height
18mm
A
C
B
D
Carburetor Dimensions
IMPORTANT:
Mikuni HSR Carburetors are legal in California only for RACING vehicles which may never be used upon a
public street or highway. In other locations check for similar laws which may apply.
Size (mm)
A B C
D
HSR42
46 90 170 65
HSR45
49 90 170 65
HSR48
53 90 178 65

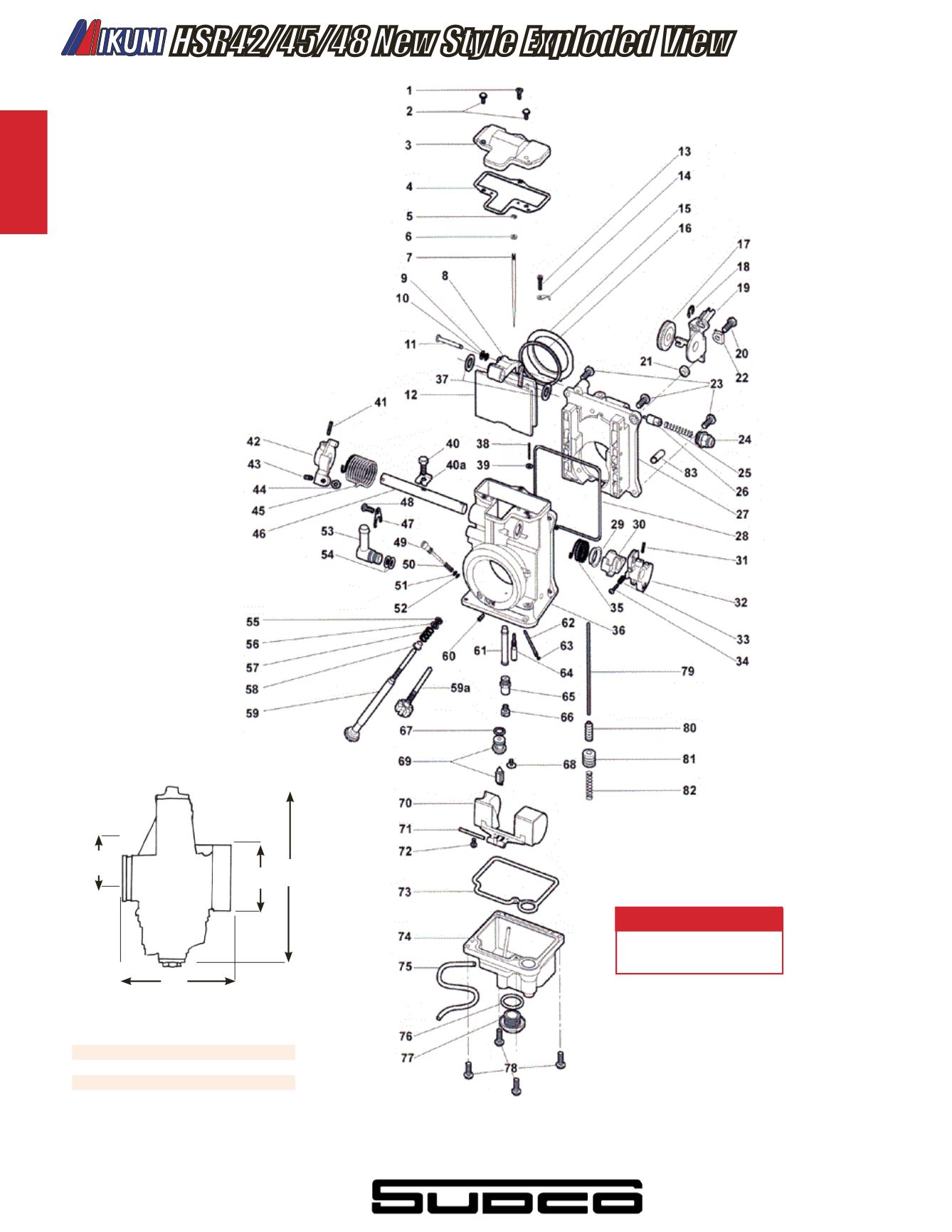

HSR42/45/48 New Style Exploded View
