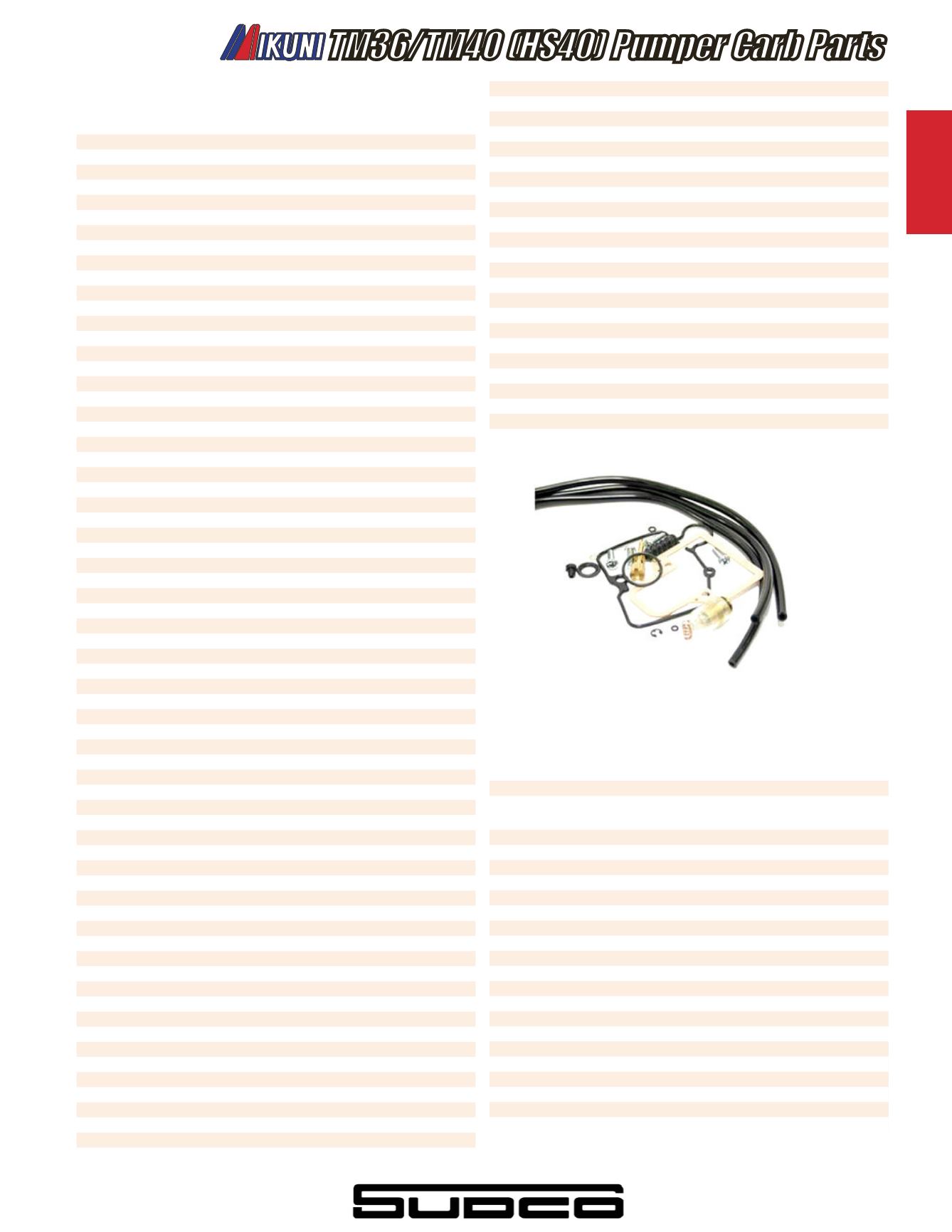

TM36/TM40 (HS40) Replacement Parts
• Lined through part numbers are no longer available.
Mikuni Part No. Highlighted in BOLD RED are included in rebuild kit.
No. Description Mikuni No. Order No.
1. Mixing Body TM4055/01 –––––––
2. E-Ring BS32/126 002-455
3. Washer 826-03002 007-267
4. Allen Screw 739-13001 007-123
5. Flat Head Screw 5x14mm C5-0514 007-625
6. Gasket TM36/39 007-119
7. Top Cover TM36/59 –––––––
8. Lever Assembly TM36/57 –––––––
9. Gasket, Funnel TM36/42 007-658
10. Funnel TM40/03 –––––––
11. Screw, Throttle Valve Plate C2=0310 –––––––
12. Plate, Throttle Valve Lever TM36/12 –––––––
13. O-Ring, Nozzle N124.063 007-163
14. Pump Nozzle standard on TM36 TM36/43-03 007-165
Optional TM36/43-05 007-166
Pump Nozzle standard on TM40/HS40 TM36/43-08 007-167
15. Plug, Nozzle TM29/14 007-164
16. Washer M10/56 002-632
17. E-Ring BSW20/70 002-355
18. Packing B401/10 002-629
19. Clip, Throttle Valve Lever TM27/05A 007-641
20. Ring, Throttle Valve Lever TM29/65 –––––––
21. Plate, Throttle Valve Lever TM27/04 –––––––
23. Jet Needle (TM40) 9DJY04-96 007-018
Jet Needle (TM36) 9DZH6-50 007-109
24. Throttle Valve TM40/81 007-430
25. O-Ring N133.037 002-858
26. Washer VM12/33 002-856
27. Spring N133.206 007-137
28. O-Ring, Float Bowl 619-94021 007-197
29. Screw, Pilot Fuel 604-26003 007-138
30. Float Chamber Body TM40/12 –––––––
31. Pilot Jet VM28/486 Pg.212
32. 568 Series, See Pg.207 for *optional sizes - HS40, TM36, TM40.
Needle Jet (HS40) 568 Series Std. 784-13002-Y6 003-666
Needle Jet (TM36) 568 Series Std. 784-13002-P8 003-656
Needle Jet (TM40) 568 Series Std. 784-13002-P8 003-656
33. O-Ring VM28/254 002-531
34. Main Jet N100.604 Pg.214
35. Drain Plug (TM40) Short TM32/41 007-646
35B . Drain Plug (TM36) Long TM32/41-1C 007-712
36. Float Assembly T859-32011 007-141
37. Pin, Float VM30/160 002-605
38. Needle Valve Assembly (TM36) 786-36011-3.3 007-505
38A. Needle Valve Assembly (TM40) 990-786-044-3.8 002-877
39. Main Air Jet (Plugged) BS30/97 002-149
40. Screw 5X12mm C5-0512-B –––––––
41. Shaft, Throttle 700-15004 –––––––
42. Packing, Shaft ––––––– –––––––
43. Pilot Air Jet BS30/97 Pg.213
44. Hexagon Nut N2=03-B 007-194
45. Adjust Screw TM36/48 007-168
46. Bracket, Bell Crank TM40/14 –––––––
47. Pin, Throttle Bell Crank N138.019 007-171
48. Lever Assembly, Bell Crank TM40/23 007-665
49. Spring, Idle Adjust (side idle only) N150.025 007-633
Spring, Idle Adjust (top idle only) BN38/341 007-491
50. Idle Adjust (side idle only) TM40/91 007-495
Idle Adjust (top idle only) 739-55003 007-490
51. Spring, Throttle Return TM36/46A 007-204
52. Screw, Top Cover CW2-0408 007-175
54. Screw, Air Funnel VM38/133 –––––––
55. Pin, A/P Locate BN38/43 007-617
56. Lever, A/Pump TM36/18 007-189
57. O-Ring B30/205 007-188
58. Spring, A/Pump TM40/33 007-668
59. Lever, A/Pump TM36/17 007-292
60. Spring, A/P Adjust M12F/46A 002-181
No. Description Mikuni No. Order No.
61. Screw, A/P Adjust MC-0316 007-193
62. Hexagon Nut N3-03-B 007-194
63. Cap, Vacuum Fitting N148.013 002-646
64. Spring Clip, Vacuum Fitting BVK28/128 –––––––
65. Cap, A/P Rubber TM36/64 007-195
66. Rod, A/Pump TM36/44 007-192
67. Plunger TM36/60 007-198
68. Spring, A/Pump VM14SC13/89 007-200
69. Plunger, Starter VM38/148 007-203
70. Hose 888-23026 007-608
71. Screw, Needle Valve Holder VM13/216 007-174
72. Screw, Float Bowl C2-0412-B 007-201
73. Starter Jet VM17/1002 Pg.213
74. Packing, Shaft VM28/174 –––––––
75. Ring, A/P Spring E204040 007-628
76. Cap, Starter Cable VM12/43 007-676
81. O-Ring N138.198 007-160
82. Spring Starter VM16/42 002-671
83. Guide Holder 640-12001 007-161
84. Plate, Fuel Inlet TM40/26 –––––––
85. Inlet, Fuel TM40/27 007-667
92. O-Ring, Needle Valve KV/10 002-709
94. Choke Cable Assembly 990-662-001 007-209
94B. Choke Knob TM40/07 007-684
See next page for TM36/TM40 (HS40) Parts & Accessories
TM36/TM40 (HS40) Carburetor Rebuild Kits
Kits contain GENUINE Mikuni parts, all the necessary parts and
gaskets to rebuild the TM36/TM40 (HS40) carburetor. Includes needle
valve assembly, o-rings, gaskets and screws. Sold as a kit.
Mikuni No. Description Order No
with 3.3 Needle Vlv. Assy. TM36 007-940
KHS-001 with 3.8 Needle Vlv. Assy. TM40 (HS40) 002-985
Exploded
View No. Qt Contents
2 1 E-Ring, Jet Needle
3 1 Washer, Jet Needle
6 1 Gasket, Top Cover
13 1 O-Ring, A/P Nozzle
15 1 Plug, A/P Nozzle
25 1 O-Ring, Fuel Screw
26 1 Washer, Fuel Screw
27 1 Spring, Fuel Screw
28 1 O-Ring, Float Bowl
29 1 Screw, Pilot Fuel
33 1 O-Ring, Drain Plug
38 1 Needle Valve Assy #3.3 (TM36)
38A Needle Valve Assy #3.8 (HS40/TM40)
39 1 Main Air Jet (Plugged)
65 1 Cap, A/P Rubber
70 1 Hose
72 4 Screw, Float Bowl
81 1 O-Ring, Starter
92 1 O-Ring, Needle Valve
