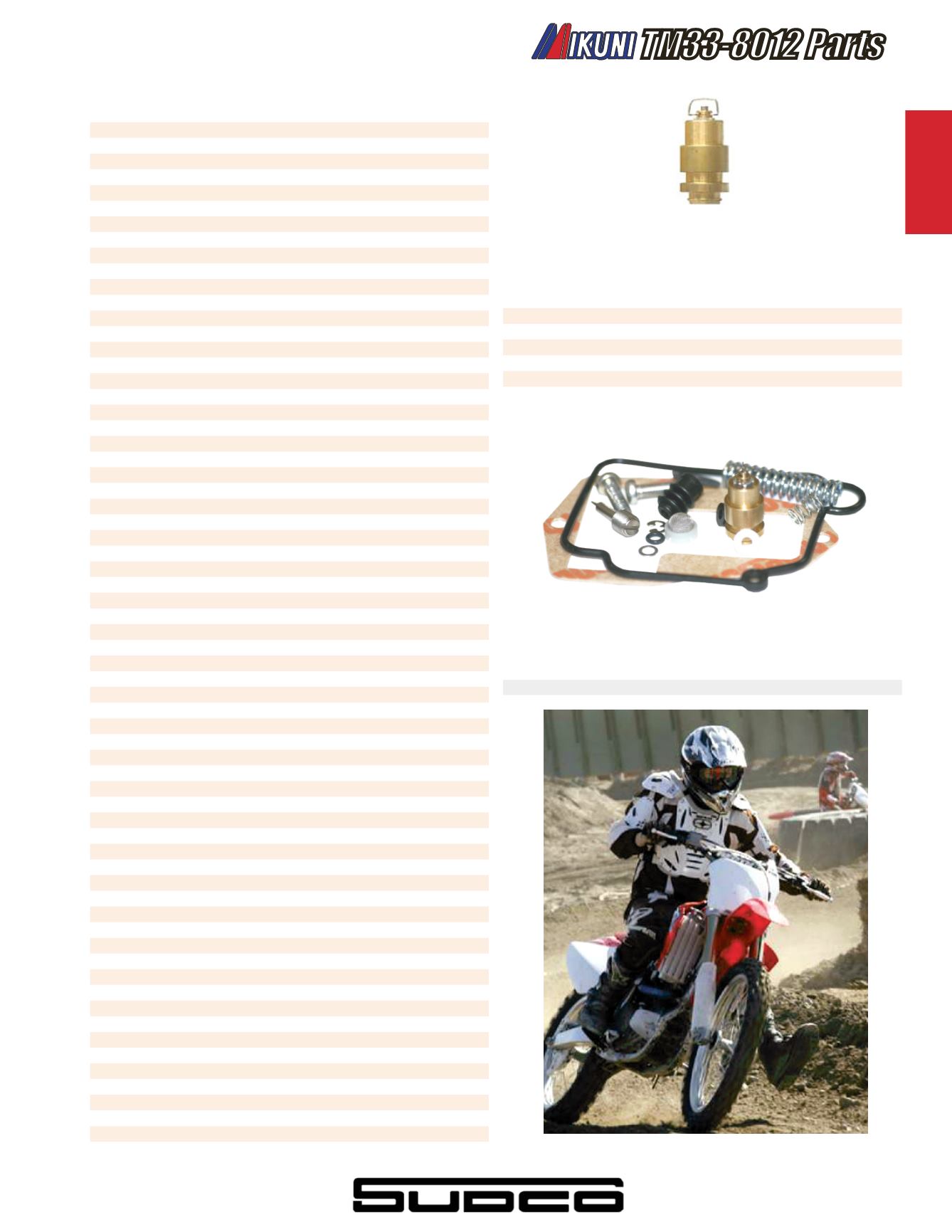

TM33-8012 Pumper Carb Replacement Parts
• Lined through part numbers are no longer available.
No. Description Mikuni No. Order No.
1. Screw, Top Cover CW2=0410 007-626
2. Top Cover TM29/16A –––––––
3. Gasket, Top Cover TM29/17 007-643
4. Screw, Joint Assy. 793-13001 –––––––
5. Joint Assembly TM29/71 –––––––
6. E-Ring VM20/369 002-083
7. Packing VM26/315 007-124
8. Jet Needle J8-5FP96-3 007-004
9. Throttle Valve 1.5 832-38007-1.5 002-948
10. Gasket, Air Funnel TM29/62 –––––––
11. Hose, Vent VM34/105 –––––––
12. Air Funnel TM33/32A –––––––
13. Screw, Air Funnel VM38/133 002-749
14. Pilot Air Jet BS30/97-1.1 Pg.213
15. Main Air Jet BS30/97-0.7 Pg.213
16. Spring, Idle Adjuster 730-07008 007-602
17. Idle Adjuster TM33/38A 007-651
18. Clip, Idle Adjuster N189.169C –––––––
19. Pin, Float VM30/160 002-605
20. Float Assembly 859-34003 007-606
21. Needle Valve Assembly N133.200-1.8 007-502
22. Screw, N.V. Holder VM13/216 007-174
23. O-Ring, N.V. Assembly KV/10 002-709
24. Filter, Needle Valve Seat VM18/233 002-606
25. Ring, (nylon), Main Jet TM33/35A –––––––
26. Ring, (brass), Main Jet VM38/106 –––––––
27. Main Jet #127.5 N100.604 Pg.214
28. Pilot Jet #37.5 VM28/486 Pg.212
29. O-Ring, Float Bowl 619-94012 007-508
30. Drain Screw, Float Bowl N133.363 007-509
31. Float Bowl TM33/77 –––––––
32. Hose, Overflow 888-23043-1F –––––––
33. Screw (Long), Float Bowl C2=0416 007-622
34. Screw (Short), Float Bowl C2=0414 007-621
35. O-Ring, A/Pump Nozzle N124.063 007-163
36. Accelerator Pump Nozzle TM29/24 007-510
37. Plug, A/Pump Nozzle TM29/14 007-164
38. Pilot Screw N138.192B 007-632
39. Spring, Pilot Screw N138.187 007-631
40. Washer, Pilot Screw VM12/33 002-856
41. O-Ring, Pilot Screw N133.037 002-858
42. Hose, Vent 888-25029-1E –––––––
43. Spring, A/Pump Plunger 730-04003A 002-867
44. A/Pump Plunger TM29/18 007-511
45. Cap, A/Pump Rod N150.048 007-512
46. Rod, A/Pump TM33/46 –––––––
47. Bolt, A/P Lever B30/397 007-613
48. Lever, A/P VM38/212 007-683
49. Spring, A/P Lever TM33/47A –––––––
50. Main Body TM33SS90/01-0 –––––––
51. Screw, Throttle Bracket C5=0510 –––––––
52. Bracket, Throttle TM33/33 007-648
53. Bell Crank TM33/44 007-720
54. Spring, Throttle Return TM24/21 –––––––
55. Packing, Throttle Shaft B36/95 007-615
56. Lever, Throttle VM13/186 –––––––
57. Washer, Throttle Lever W4=05 002-679
58. Bolt, Throttle Lever VM28/230 002-519
59. Spring, Linkage Lever VM33/4C 002-631
60. Plate, Linkage Lever VM33/45 002-630
61. Washer, Linkage Lever M10/56 002-632
62. E-Ring, Linkage Lever BSW28/70 002-355
63. Packing, Linkage Lever B40I/10 002-629
64. Choke Assy. TM33/49 007-654
65. O-Ring, Choke Assy. N138.198 007-160
66. Needle Jet - 640 Series 784-24111-P-8 Pg.207
Applications: TM33-8012 Pumper Carburetor and OEM Suzuki
DR350 offroad (90-99) with Mikuni TM33 carburetor. Sold each.
Size Mikuni No. Order No.
1.5 N133.200-1.5 007-501
1.8 N133.200-1.8 007-502
2.0 N133.200-2.0 007-503
2.3 N133.200-2.3 007-504
O-Ring for Needle Valve Seat KV/10 002-709
Filter Screen for Needle Valve Seat VM18/233 002-606
TM33-8012 Needle Valve Assembly
Photo courtesy of
Kit includes GENUINE Mikuni parts to rebuild the TM33-8012
pumper carburetor. Sold as a kit.
Order No. 025-661
TM33-8012 Carburetor Rebuild Kit
